Aluminized zinc coil

Aluminized zinc steel plate is a new type of steel plate, which is made of cold rolled or hot rolled steel plate by hot dip plating. The coating composition is 55% aluminum, 43.4% zinc and 1.6% silicon. This kind of steel plate is gradually replacing galvanized sheet because of its excellent corrosion resistance. Aluminized zinc steel plate is widely used around the world.

Classification :

Coil Series

Aluminized Zinc Coil

+86 13455159983

nucorsteel@nucorsteel.cn

E-mail

PRODUCT DETAILS

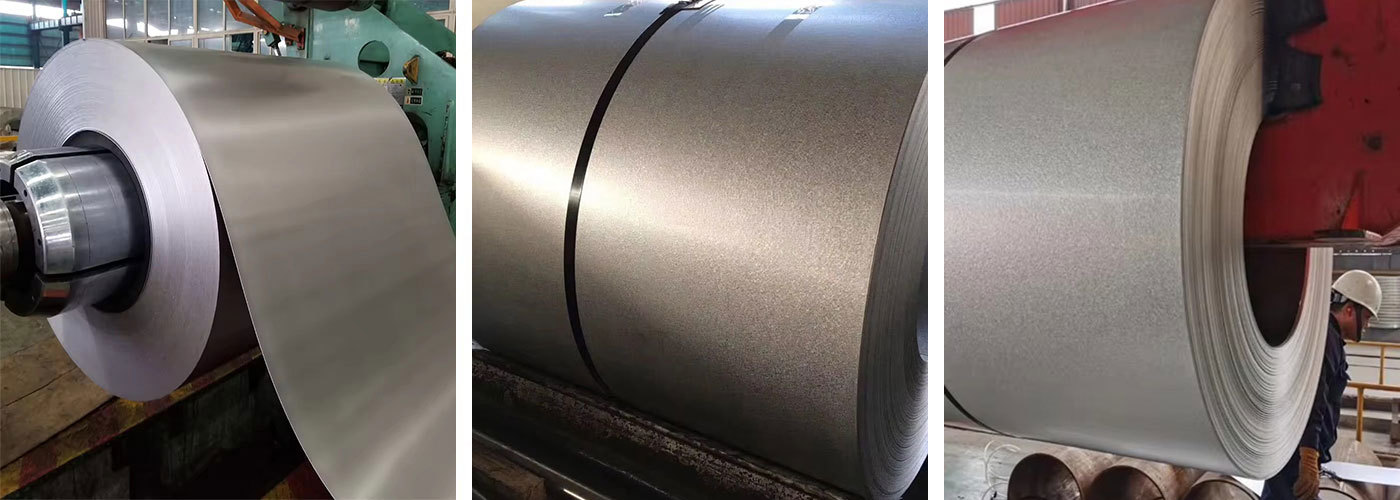

Aluminum-zinc coated steel coil is a kind of metal material with a surface coating of 55% aluminum-zinc alloy. It features excellent corrosion resistance, heat resistance and processing performance, and is widely used in construction, home appliances, automotive manufacturing and other fields.

Aluminium-zinc plated steel plate has the following characteristics:
1. Super corrosion resistance: the corrosion resistance of the product is 6-8 times that of the general galvanized sheet, and it can guarantee no rust for 20 years in various environments.
2. High temperature oxidation resistance: this product will not have any discoloration or deformation in a high temperature environment of 315 degrees Celsius for a long time.
3. High thermal reflectance: the thermal reflectance of this product is higher than 75%, almost twice that of galvanized sheet, which can be used as roof and panel to achieve energy saving effect in the case of no paint.
4.Easy processing: this product can meet stamping, cutting, bending and other processing;
5.Beautiful appearance: silver white snow pattern is very beautiful and can be directly used without painting.
5. Wide application: this product can be used in electrical equipment, chemical appliances, building structures civil and so on.

Product name	Aluminized zinc coil
Technical Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Thickness	0.12-6.00mm,or customer's requirement
Width	600mm-1500mm, according to customer's requirement
Type of Coating	Hot Dipped Galvanized Steel(HDGI)
Zinc Coating	30-275g/m2
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Coil Weight	3-20 metric ton per coil

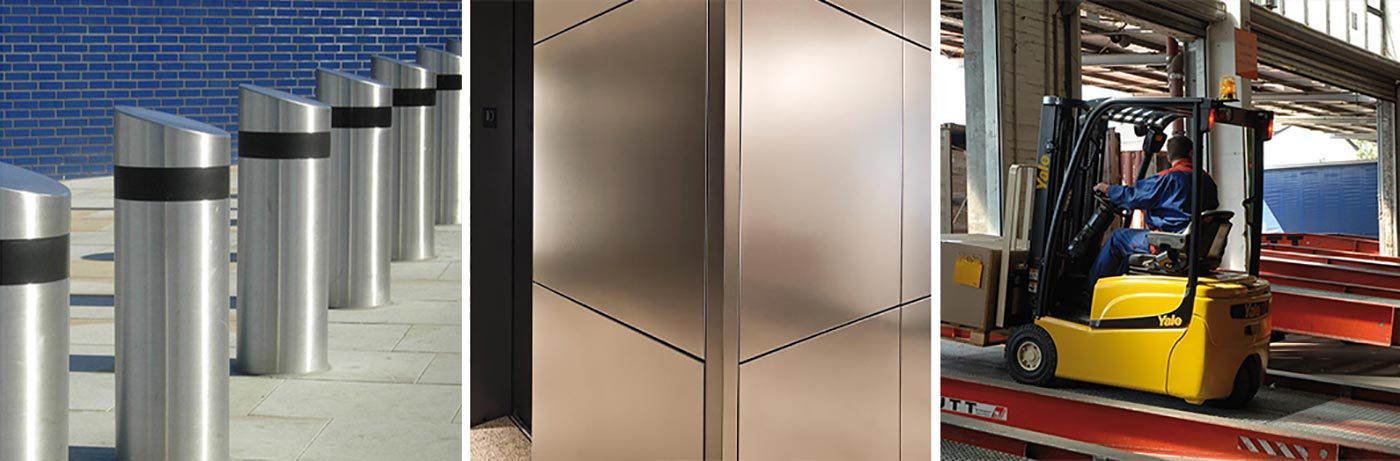

Application	Mainly used in construction, automobiles, household appliances, agriculture and other fields
