Galvanized steel wire

Galvanized steel wire is carbon steel wire coated with zinc by hot-dip or electroplating. Its properties are similar to those of straightened and tempered steel wire. It can be used as unbonded prestressing tendons, but requires a minimum of 200-300g of zinc per square meter. It is commonly used as parallel steel cables in cable-stayed bridges (flexible sheaths are also used as an outer layer of protection).

Classification :

Bar Series

Galvanized steel wire

+86 13455159983

nucorsteel@nucorsteel.cn

E-mail

PRODUCT DETAILS

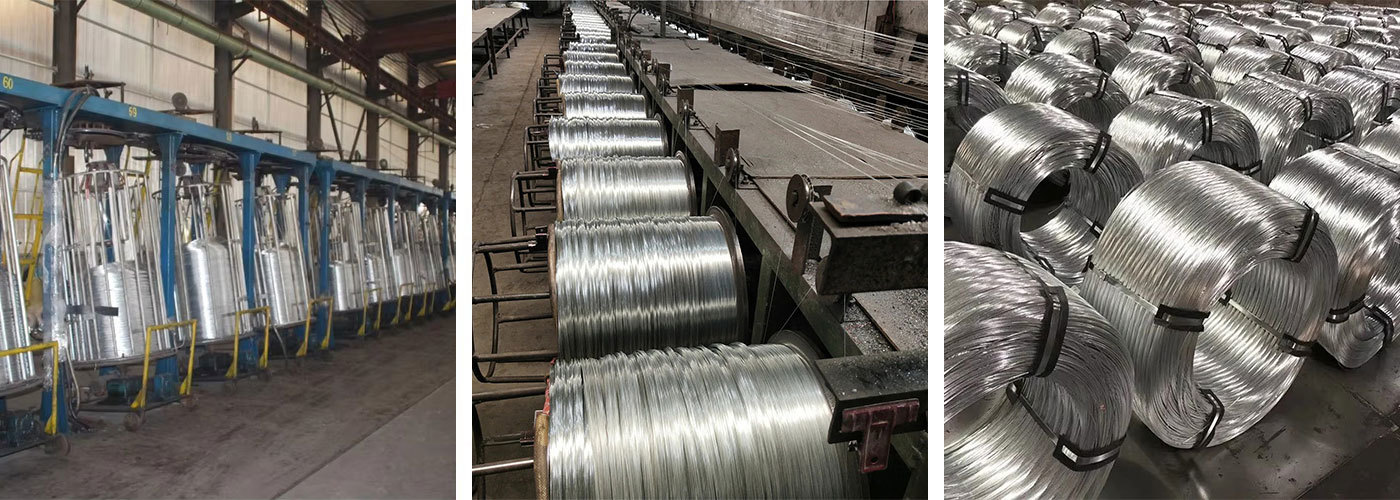

Galvanized steel wire is made by drawing high-quality carbon structural steel such as 45#, 65#, 70#, and then galvanizing (electrogalvanizing or hot-dip galvanizing).
Galvanized steel wire is a carbon steel wire that is galvanized on the surface by hot-dip or electroplating. Its performance is the same as that of straightened and tempered steel wire. It can be used as unbonded prestressed tendons, but at least 200-300g of zinc must be plated per square meter.

Product name	Galvanized steel wire
Diameter	0.3~5mm
Length	Customizable
Property	Anti-Corrosion,Heat Resistant
Grade	Q195 Q235 Q345 SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 DX51D DX52D DX53D DX54D DX55D DX56D DX57D S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD SS230 SS250 SS275
Material	ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345
Surface Protection	With PE/PVC film on main side (if specified)
Gloss	20% to 80%, depends on client’s requirement.
port	tianjin qingdao
Minimum Order Quantity	5MT per size, total 20MT for one order

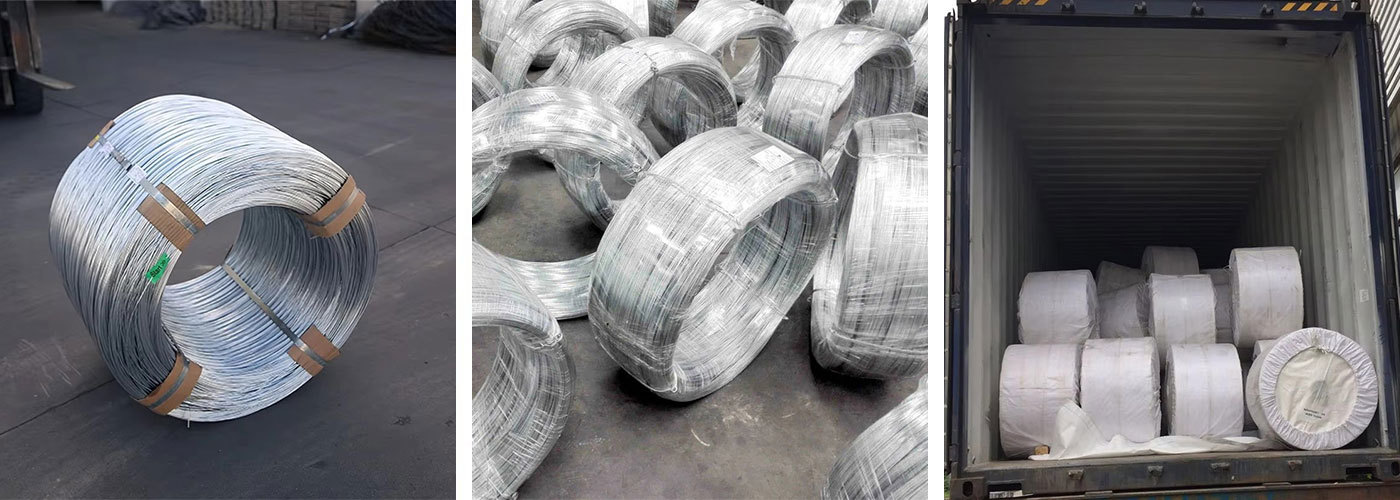

Packing	Standard export worthy wooden pallets
